Transmitter
The DQPSK Transmitter

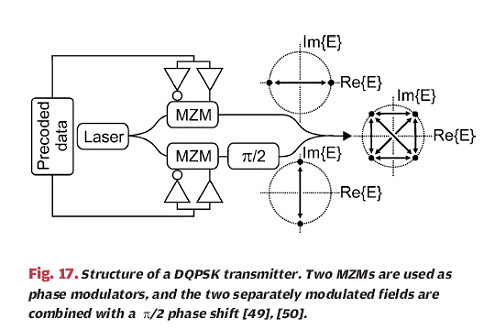

The DQPSK transmitter can be considered as the two channels BPSK transmitters, which shows as above.
Receiver
The DQPSK Receiver
There are two kinds of receivers: coherent detector and differential decoder.

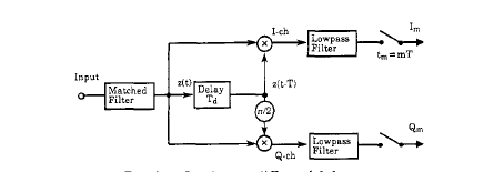

This is a block diagram of the DQPSK receiver, which used the differential coherent detector. It is clearly to consider it as two quadrature channels BPSK receivers.
